GPR-A Series Tomato Sauce, Fruit Jam, Catchup Viscosity Bottle Turntable, Bottle Rinser, Filling, Capping, Labeling Production Line.(Appliance For Light & Heavy Sauces With No Particulates)
Description

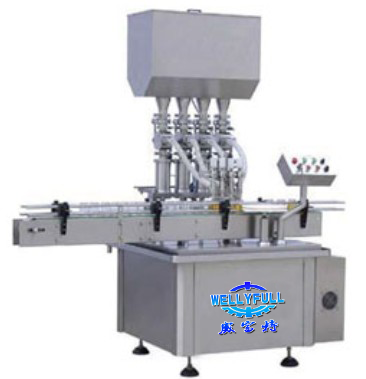

This filling production line consists of GHR-A turntable, GHR-B rolling bottle rinser, GHR-D viscosity filler , GHR-DH vacuumize jar capper, automatically finish the function of bottle infeeding, rinsing, hot filling, steam filling and capping. The filler equipped unique and particular non-return valve, sanitary, temperature,acid and alkaline resistance.Long life and high filling precious.The capper can fill steam, vacuumize the jar while the steam cooling to water, for good seal to keep the material fresh.Whole line fully meet to the requirement of GMP.
Main Technical Parameter:
Appliance for bottle : 20-1000ml
Bottle size range: ∮20-∮150mm
Cap size range: ∮20-∮70mm
Production capacity:4fill nozzles 1000-2500bph
8fill nozzles 1000-2500bph
12fill nozzles 1000-2500bph
Tolerance of filling quantity: ≤±1% standard
Yield of capping: ≥98%
Power source: 380/220V 50/60Hz
Total output: ≤3.5Kw
Air pressure: 0.4~0.6Mpa
Speed control:Frequency conversion adjusting speed.
